本节目标

点击收起

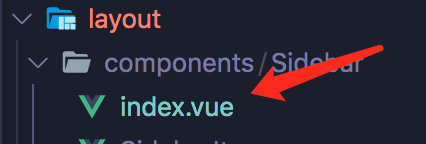

src/layout/components/Sidebar/index.vue

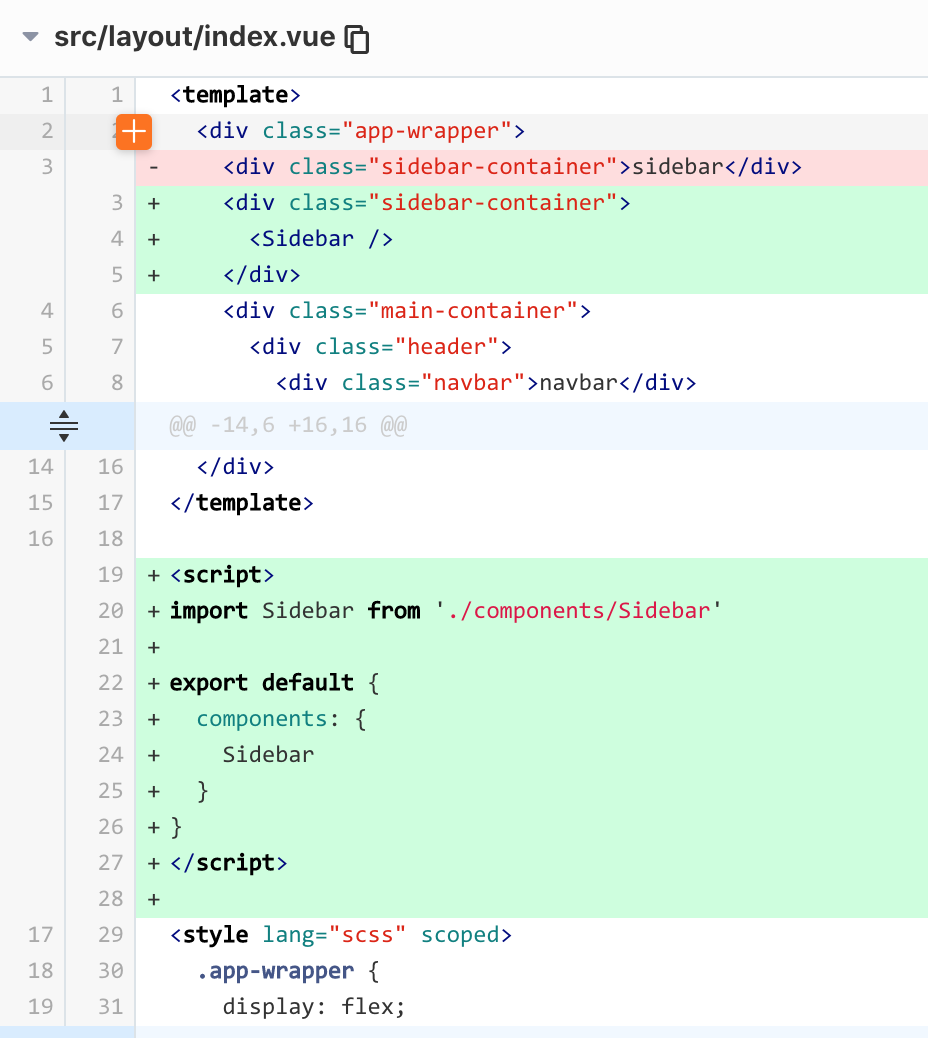

将 layout/index.vue 中导入组件

vue

<template>
  <div class="app-wrapper">
    <div class="sidebar-container">
      <Sidebar />
    </div>
    <div class="main-container">
      <div class="header">
        <div class="navbar">navbar</div>
        <div class="tags-view">tagsview</div>
      </div>
      <div class="app-main">
        <h2>app main</h2>
        <router-view></router-view>
      </div>
    </div>
  </div>
</template>

<script>
import Sidebar from './components/Sidebar'

export default {
  components: {
    Sidebar
  }
}
</script>

<style lang="scss" scoped>
  .app-wrapper {
    display: flex;
    width: 100%;
    height: 100%;
    .main-container {
      flex: 1;
      display: flex;
      flex-direction: column;
      .header {
        background: cyan;
        .navbar {
          height: 50px;
          background: #1890ff;
        }
        .tags-view {
          height: 34px;
          background: #12efff;
        }
      }
      .app-main {
        /* 50= navbar  50  如果有tagsview + 34  */
        min-height: calc(100vh - 84px);
        background: red;
      }
    }
  }
</style>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

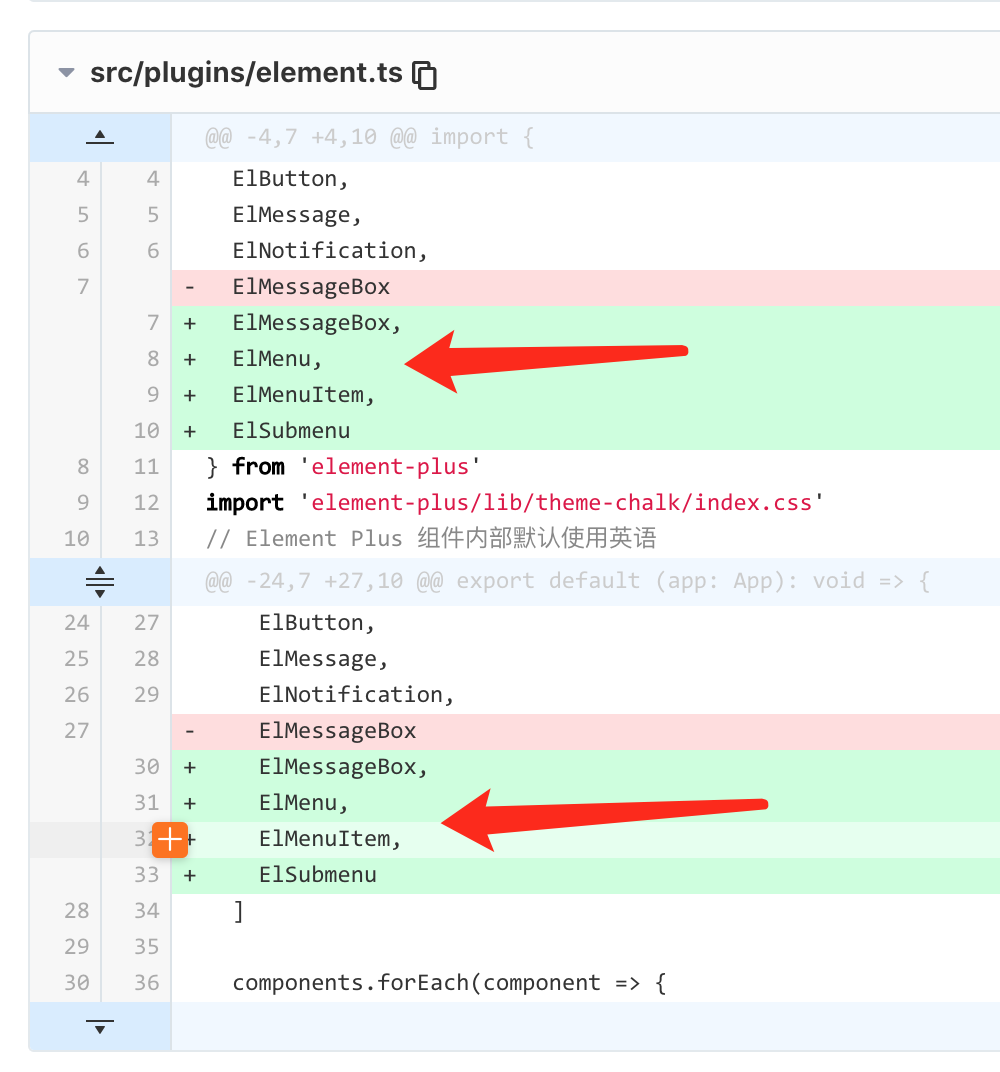

1.element.ts 导入所需菜单组件

这里主要会用到 el-menu el-menu-item element 组件大家别忘了导入

src/layout/components/Sidebar/index.vue

vue

<template>
  <div>
    <!-- 测试展开收起 -->
    <h8 @click="isCollapse=!isCollapse">展收测试</h8>

    <el-menu
      class="sidebar-container-menu"
      mode="vertical"
      :default-active="activeMenu"
      :background-color="scssVariables.menuBg"
      :text-color="scssVariables.menuText"
      :active-text-color="scssVariables.menuActiveText"
      :collapse="isCollapse"
      :collapse-transition="true"
    >
      <sidebar-item />
    </el-menu>
  </div>
</template>

<script lang="ts">
import { defineComponent, computed, ref } from 'vue'
import { useRoute } from 'vue-router'
// 导入scss变量在组件中使用
import variables from '@/styles/variables.scss'
// el-menu-item封装
import SidebarItem from './SidebarItem.vue'

export default defineComponent({
  name: 'Sidebar',
  components: {
    SidebarItem
  },
  setup() {
    const route = useRoute()
    // 根据路由路径 对应 当前激活的菜单 页面刷新后 激活当前路由匹配的菜单
    const activeMenu = computed(() => {
      const { path } = route
      return path
    })
    // scss变量
    const scssVariables = computed(() => variables)
    // 菜单展开收起状态 后面会放store里
    const isCollapse = ref(true)

    return {
      // ...toRefs(variables), // 不有toRefs原因 缺点variables里面变量属性来源不明确
      scssVariables,
      isCollapse,
      activeMenu
    }
  }
})
</script>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

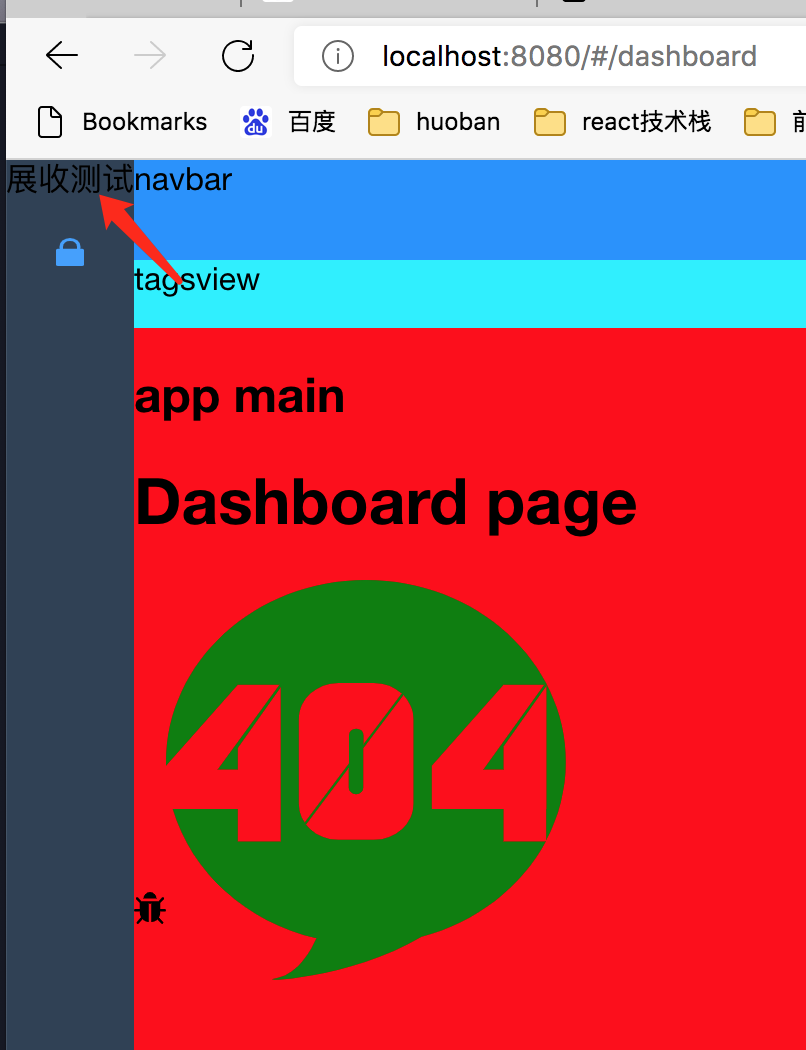

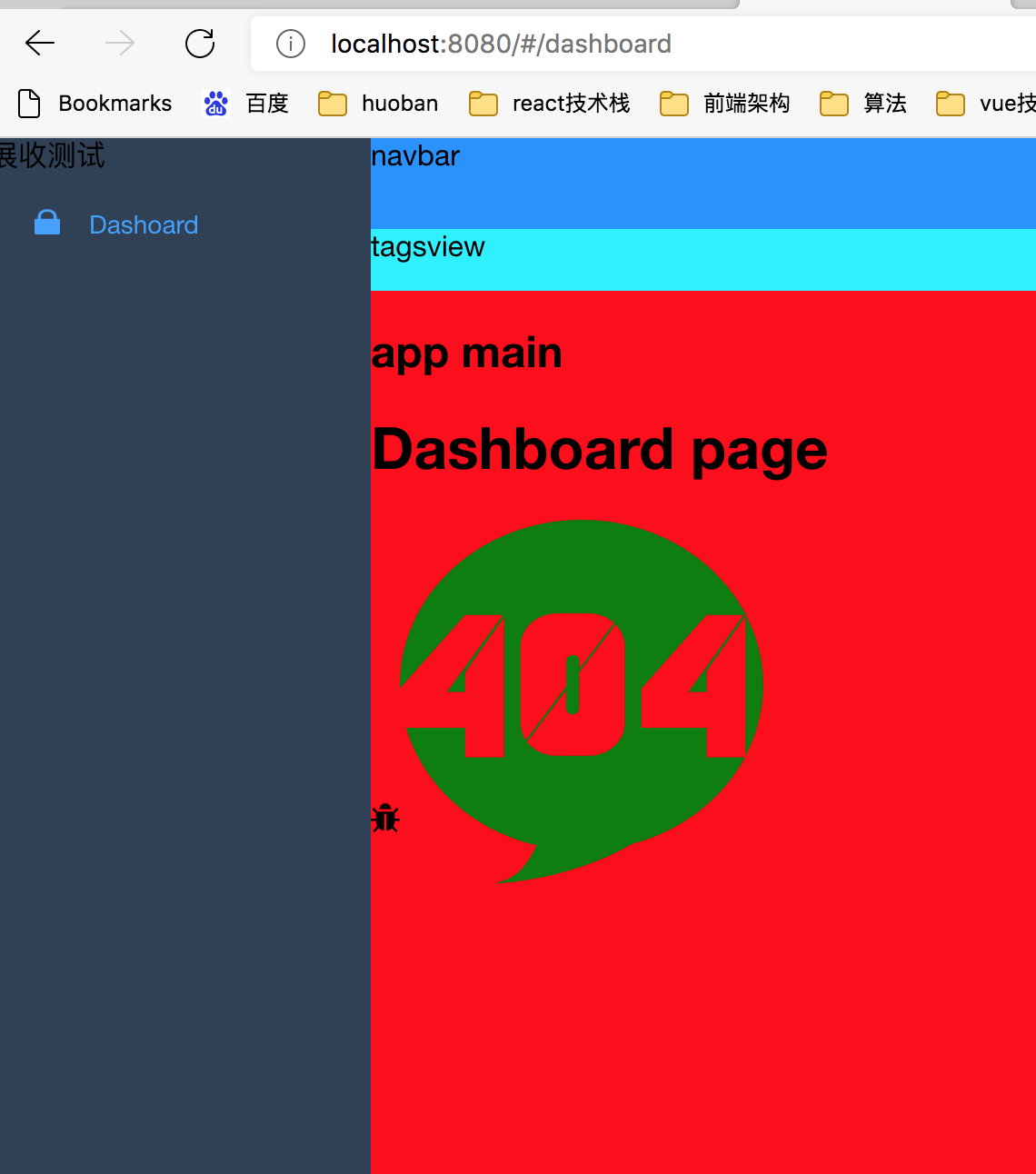

3. 封装 SidebarItem 组件

src/layout/components/Sidebar/SidebarItem.vue 目前里面只有一个菜单项大家可以测下菜单展开收起

vue

<template>
  <div class="sidebar-item-container">
    <el-menu-item index="1">
      <svg-icon class="menu-icon" icon-class="lock"></svg-icon>
      <template #title>
        <span>Dashoard</span>
      </template>
    </el-menu-item>
  </div>
</template>

<script lang="ts">
import { defineComponent } from 'vue'

export default defineComponent({
  name: 'SidebarItem'
})
</script>

<style lang="scss">
.sidebar-item-container {
  .menu-icon {
    margin-right: 16px;
    margin-left: 5px;
    vertical-align: middle;
  }
}
</style>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

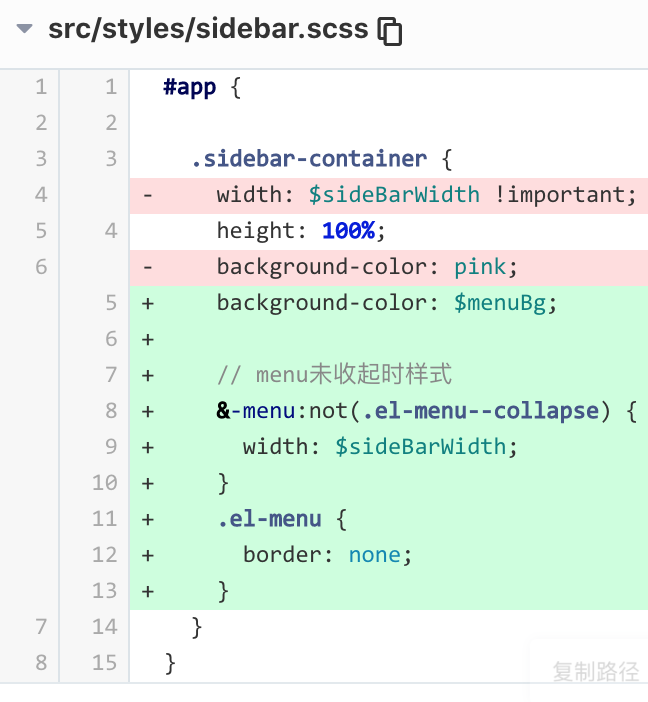

css

#app {
  .sidebar-container {
    width: $sideBarWidth !important;
    height: 100%;
    background-color: pink;
    background-color: $menuBg;

    // menu未收起时样式
    &-menu:not(.el-menu--collapse) {
      width: $sideBarWidth;
    }
    .el-menu {
      border: none;
    }
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

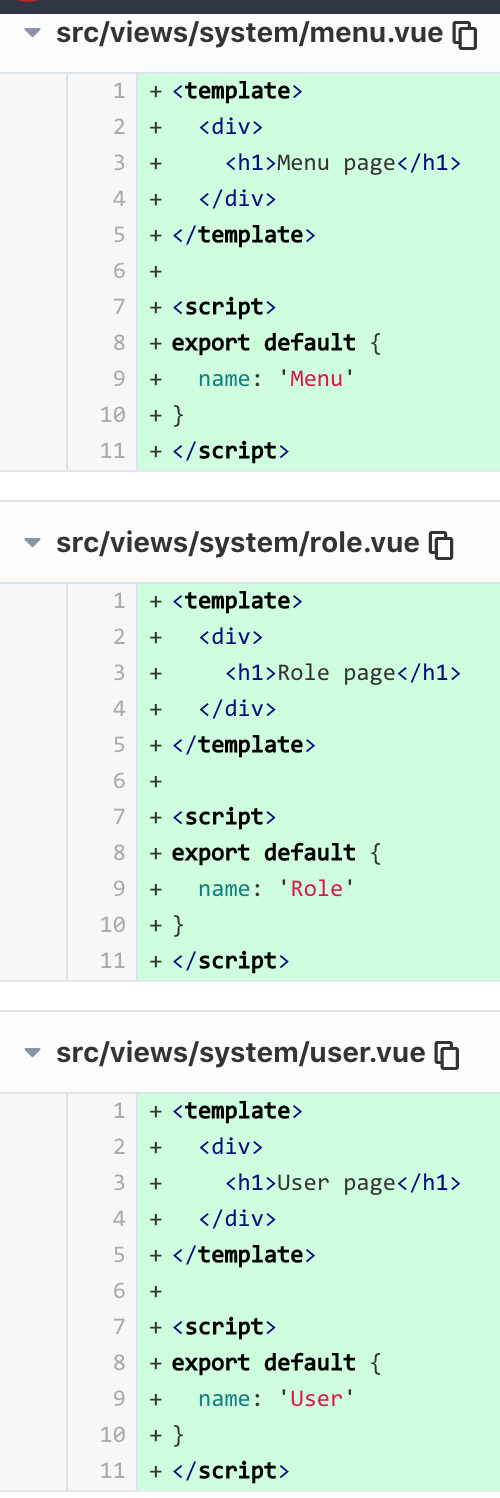

5. 简单创建几个路由页

内容很简单

6. 路由注册下

路由一级都是 layout 组件

typescript

import { createRouter, createWebHashHistory, RouteRecordRaw } from 'vue-router'
import Layout from '@/layout/index.vue'

// 看作是异步获取路由
export const asyncRoutes: Array<RouteRecordRaw> = [
  {
    path: '/documentation',
    component: Layout, // 布局组件作为一级路由
    redirect: '/documentation/index',
    children: [
      {
        path: 'index',
        name: 'Documentation',
        component: () => import(/* webpackChunkName: "documentation" */ '@/views/documentation/index.vue'),
        meta: {
          title: 'Documentation',
          icon: 'documentation'
        }
      }
    ]
  },
  {
    path: '/guide',
    component: Layout,
    redirect: '/guide/index',
    children: [
      {
        path: 'index',
        name: 'Guide',
        component: () => import(/* webpackChunkName: "guide" */ '@/views/guide/index.vue'),
        meta: {
          title: 'Guide',
          icon: 'guide'
        }
      }
    ]
  },
  {
    path: '/system',
    component: Layout,
    redirect: '/system/user',
    meta: {
      title: 'System',
      icon: 'lock'
    },
    children: [
      {
        path: 'menu',
        component: () => import(/* webpackChunkName: "menu" */ '@/views/system/menu.vue'),
        meta: {
          title: 'Menu Management',
          icon: 'list'
        }
      },
      {
        path: 'role',
        component: () => import(/* webpackChunkName: "role" */ '@/views/system/role.vue'),
        meta: {
          title: 'Role Management',
          icon: 'list'
        }
      },
      {
        path: 'user',
        component: () => import(/* webpackChunkName: "user" */ '@/views/system/user.vue'),
        meta: {
          title: 'User Management',
          icon: 'list'
        }
      }
    ]
  }
]

export const constantRoutes: Array<RouteRecordRaw> = [
  {
    path: '/',
    component: Layout,
    redirect: '/dashboard',
    children: [
      {
        path: 'dashboard',
        name: 'Dashboard',
        component: () => import(/* webpackChunkName: "dashboard" */ '@/views/dashboard/index.vue'),
        meta: {
          title: 'Dashboard'
        }
      }
    ]
  }
]

export const routes = [
  ...constantRoutes, // 解构语法可能报波浪线tslib版本升级 没懂 暂时先不管
  ...asyncRoutes
]

const router = createRouter({
  history: createWebHashHistory(),
  routes
})

export default router

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104

本节源码参考

https://gitee.com/brolly/vue3-element-admin/commit/7411683e2923767adb62b051b0f9a6d12cc907e5
