标签导航基本功能

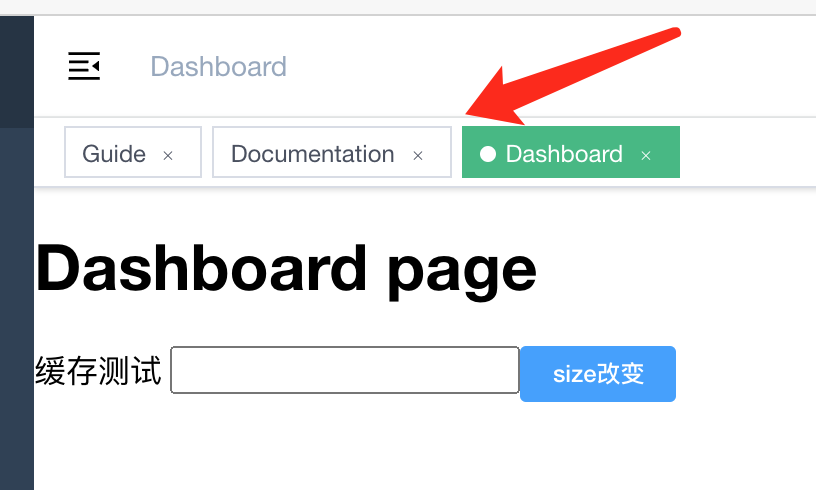

效果图 image.png

2-1 创建 TagsView 组件

src/layout/components/TagsView/index.vue

vue
<template>
  <div class="tags-view-container">
    <div class="tags-view-wrapper">
      <!-- 一个个tag view就是router-link -->
      <router-link
        class="tags-view-item"
        :class="{
          active: isActive(tag)
        }"
        v-for="(tag, index) in visitedTags"
        :key="index"
        :to="{ path: tag.path, query: tag.query, fullPath: tag.fullPath }"
        tag="span"
      >
        {{ tag.meta.title }}
        <span
          class="el-icon-close"
          @click.prevent.stop="closeSelectedTag(tag)"
        ></span>
      </router-link>
    </div>
  </div>
</template>

<script lang="ts">
import { defineComponent, computed, watch, onMounted } from 'vue'
import { useRoute, RouteRecordRaw } from 'vue-router'
import { useStore } from '@/store'

export default defineComponent({
  name: 'TagsView',
  setup() {
    const store = useStore()
    const route = useRoute()
    // 从store里获取 可显示的tags view
    const visitedTags = computed(() => store.state.tagsView.visitedViews)
    // 添加tag
    const addTags = () => {
      const { name } = route
      if (name) {
        store.dispatch('tagsView/addView', route)
      }
    }

    // 路径发生变化追加tags view
    watch(() => route.path, () => {
      addTags()
    })

    // 最近当前router到tags view
    onMounted(() => {
      addTags()
    })

    // 是否是当前应该激活的tag
    const isActive = (tag: RouteRecordRaw) => {
      return tag.path === route.path
    }

    // 关闭当前右键的tag路由
    const closeSelectedTag = (view: RouteRecordRaw) => {
      store.dispatch('tagsView/delView', view)
    }

    return {
      visitedTags,
      isActive,
      closeSelectedTag
    }
  }
})
</script>

<style lang="scss" scoped>
.tags-view-container {
  width: 100%;
  height: 34px;
  background: #fff;
  border-bottom: 1px solid #d8dce5;
  box-shadow: 0 1px 3px 0 rgba(0, 0, 0, .12), 0 0 3px 0 rgba(0, 0, 0, .04);
  .tags-view-wrapper {
    .tags-view-item {
      display: inline-block;
      height: 26px;
      line-height: 26px;
      border: 1px solid #d8dce5;
      background: #fff;
      color: #495060;
      padding: 0 8px;
      box-sizing: border-box;
      font-size: 12px;
      margin-left: 5px;
      margin-top: 4px;
      &:first-of-type {
        margin-left: 15px;
      }
      &:last-of-type {
        margin-right: 15px;
      }
      &.active {
        background-color: #42b983;
        color: #fff;
        border-color: #42b983;
        &::before {
          position: relative;
          display: inline-block;
          content: '';
          width: 8px;
          height: 8px;
          border-radius: 50%;
          margin-right: 5px;
          background: #fff;
        }
      }
    }
  }
}
</style>

<style lang="scss">
.tags-view-container {
  .el-icon-close {
    width: 16px;
    height: 16px;
    position: relative;
    left: 2px;
    border-radius: 50%;
    text-align: center;
    transition: all .3s cubic-bezier(.645, .045, .355, 1);
    transform-origin: 100% 50%;
    &:before {
      transform: scale(.6);
      display: inline-block;
      vertical-align: -1px;
    }
    &:hover {
      background-color: #b4bccc;
      color: #fff;
    }
  }
}
</style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143

2-2 定义 store

定义 tagsView module

src/store/modules/tagsView.ts

typescript
import { Module, ActionTree, MutationTree } from 'vuex'
import { RouteRecordRaw } from 'vue-router'
import { IRootState } from '@/store'

export interface ITagsViewState {
  // 存放当前显示的tags view集合
  visitedViews: RouteRecordRaw[];
}

// 定义mutations
const mutations: MutationTree<ITagsViewState> = {
  // 添加可显示tags view
  ADD_VISITED_VIEW(state, view) {
    // 过滤去重
    if (state.visitedViews.some(v => v.path === view.path)) return
    // 没有title时处理
    state.visitedViews.push(Object.assign({}, view, {
      title: view.meta.title || 'tag-name'
    }))
  },
  DEL_VISITED_VIEW(state, view) {
    const i = state.visitedViews.indexOf(view)
    if (i > -1) {
      state.visitedViews.splice(i, 1)
    }
  }
}

// 定义actions
const actions: ActionTree<ITagsViewState, IRootState> = {
  // 添加tags view
  addView({ dispatch }, view: RouteRecordRaw) {
    dispatch('addVisitedView', view)
  },
  // 添加可显示的tags view 添加前commit里需要进行去重过滤
  addVisitedView({ commit }, view: RouteRecordRaw) {
    commit('ADD_VISITED_VIEW', view)
  },
  // 删除tags view
  delView({ dispatch }, view: RouteRecordRaw) {
    dispatch('delVisitedView', view)
  },
  // 从可显示的集合中 删除tags view
  delVisitedView({ commit }, view: RouteRecordRaw) {
    commit('DEL_VISITED_VIEW', view)
  }
}

const tagsView: Module<ITagsViewState, IRootState> = {
  namespaced: true,
  state: {
    visitedViews: []
  },
  mutations,
  actions
}

export default tagsView
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

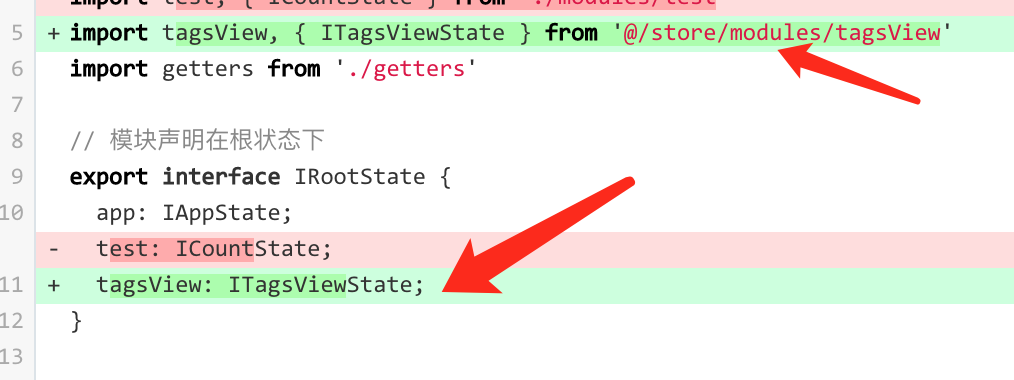

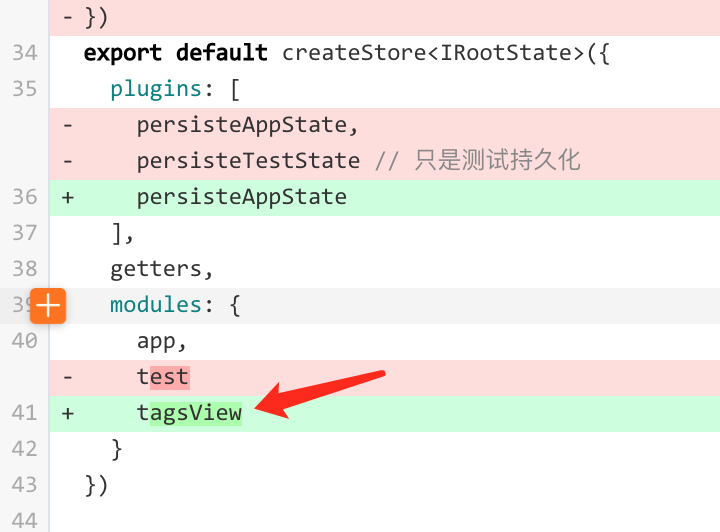

修改 store 导入 module

image.pngimage.png src/store/index.ts

typescript
import { InjectionKey } from 'vue'
import { createStore, Store, useStore as baseUseStore } from 'vuex'
import createPersistedState from 'vuex-persistedstate'
import app, { IAppState } from '@/store/modules/app'
import tagsView, { ITagsViewState } from '@/store/modules/tagsView'
import getters from './getters'

// 模块声明在根状态下
export interface IRootState {
  app: IAppState;
  tagsView: ITagsViewState;
}

// 通过下面方式使用 TypeScript 定义 store 能正确地为 store 提供类型声明。
// https://next.vuex.vuejs.org/guide/typescript-support.html#simplifying-usestore-usage
// eslint-disable-next-line symbol-description
export const key: InjectionKey<Store<IRootState>> = Symbol()

// 对于getters在组件使用时没有类型提示
// 有人提交了pr #1896 为getters创建泛型 应该还未发布
// https://github.com/vuejs/vuex/pull/1896
// 代码pr内容详情
// https://github.com/vuejs/vuex/pull/1896/files#diff-093ad82a25aee498b11febf1cdcb6546e4d223ffcb49ed69cc275ac27ce0ccce

// vuex store持久化 默认使用localstorage持久化
const persisteAppState = createPersistedState({
  storage: window.sessionStorage, // 指定storage 也可自定义
  key: 'vuex_app', // 存储名 默认都是vuex 多个模块需要指定 否则会覆盖
  // paths: ['app'] // 针对app这个模块持久化
  // 只针对app模块下sidebar.opened状态持久化
  paths: ['app.sidebar.opened', 'app.size'] // 通过点连接符指定state路径
})

export default createStore<IRootState>({
  plugins: [
    persisteAppState
  ],
  getters,
  modules: {
    app,
    tagsView
  }
})

// 定义自己的 `useStore` 组合式函数
// https://next.vuex.vuejs.org/zh/guide/typescript-support.html#%E7%AE%80%E5%8C%96-usestore-%E7%94%A8%E6%B3%95
// eslint-disable-next-line @typescript-eslint/explicit-module-boundary-types
export function useStore () {
  return baseUseStore(key)
}

// vuex持久化 vuex-persistedstate文档说明
// https://www.npmjs.com/package/vuex-persistedstate
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53

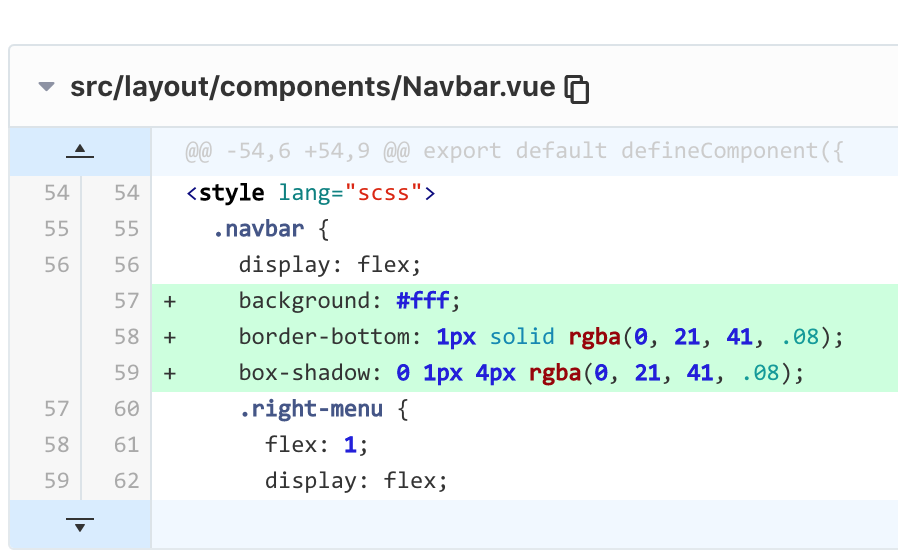

修改 navbar 样式


vue
<template>
  <div class="navbar">
    <hambuger  @toggleClick="toggleSidebar" :is-active="sidebar.opened"/>
    <breadcrumb />
    <div class="right-menu">
      <!-- 全屏 -->
      <screenfull id="screefull" class="right-menu-item hover-effect" />
      <!-- element组件size切换 -->
      <el-tooltip content="Global Size" effect="dark" placement="bottom">
        <size-select class="right-menu-item hover-effect" />
      </el-tooltip>
      <!-- 用户头像 -->
      <avatar />
    </div>
  </div>
</template>

<script lang="ts">
import { defineComponent, computed } from 'vue'
import Breadcrumb from '@/components/Breadcrumb/index.vue'
import Hambuger from '@/components/Hambuger/index.vue'
import { useStore } from '@/store/index'
import Screenfull from '@/components/Screenfull/index.vue'
import SizeSelect from '@/components/SizeSelect/index.vue'
import Avatar from './avatar/index.vue'

export default defineComponent({
  name: 'Navbar',
  components: {
    Breadcrumb,
    Hambuger,
    Screenfull,
    SizeSelect,
    Avatar
  },
  setup() {
    // 使用我们自定义的useStore 具备类型提示
    // store.state.app.sidebar 对于getters里的属性没有类型提示
    const store = useStore()
    const toggleSidebar = () => {
      store.dispatch('app/toggleSidebar')
    }
    // 从getters中获取sidebar
    const sidebar = computed(() => store.getters.sidebar)

    return {
      toggleSidebar,
      sidebar
    }
  }
})
</script>

<style lang="scss">
  .navbar {
    display: flex;
    background: #fff;
    border-bottom: 1px solid rgba(0, 21, 41, .08);
    box-shadow: 0 1px 4px rgba(0, 21, 41, .08);
    .right-menu {
      flex: 1;
      display: flex;
      align-items: center;
      justify-content: flex-end;
      padding-right: 15px;
      &-item {
        padding: 0 8px;
        font-size: 18px;
        color: #5a5e66;
        vertical-align: text-bottom;
        &.hover-effect {
          cursor: pointer;
          transition: background .3s;

          &:hover {
            background: rgba(0, 0, 0, .025);
          }
        }
      }
    }
  }
</style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83

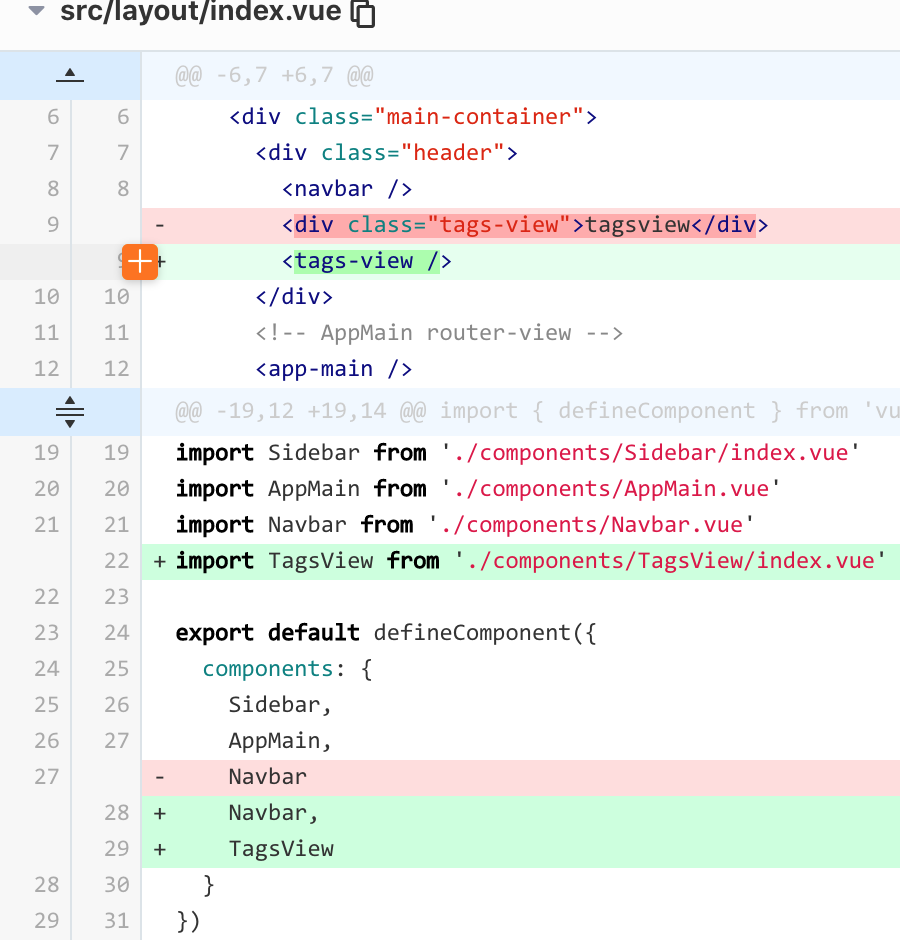

2-3 导入到 layout 组件

image.png src/layout/index.vue

vue
<template>
  <div class="app-wrapper">
    <div class="sidebar-container">
      <Sidebar />
    </div>
    <div class="main-container">
      <div class="header">
        <navbar />
        <tags-view />
      </div>
      <!-- AppMain router-view -->
      <app-main />
    </div>
  </div>
</template>

<script lang="ts">
import { defineComponent } from 'vue'
import Sidebar from './components/Sidebar/index.vue'
import AppMain from './components/AppMain.vue'
import Navbar from './components/Navbar.vue'
import TagsView from './components/TagsView/index.vue'

export default defineComponent({
  components: {
    Sidebar,
    AppMain,
    Navbar,
    TagsView
  }
})
</script>

<style lang="scss" scoped>
  .app-wrapper {
    display: flex;
    width: 100%;
    height: 100%;
    .main-container {
      flex: 1;
      display: flex;
      flex-direction: column;
      .app-main {
        /* 50= navbar  50  如果有tagsview + 34  */
        min-height: calc(100vh - 84px);
      }
    }
  }
</style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

本节参考源码

https://gitee.com/brolly/vue3-element-admin/commit/7bd90896ab32f9295d3f1864fba75952a47d1435

Copyright © 2018-2025 Mason

沪ICP备20006251号-1
