标签导航支持对应路由缓存

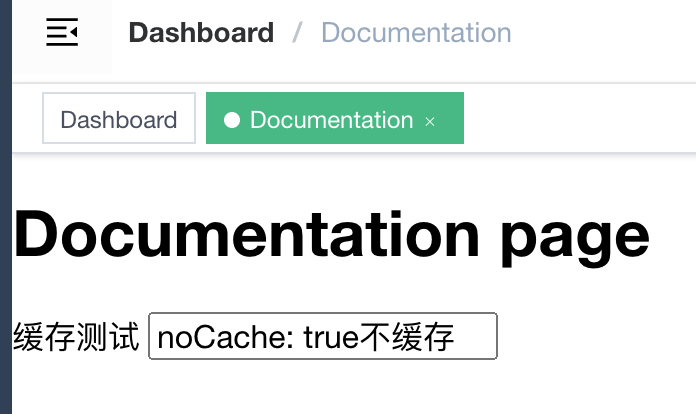

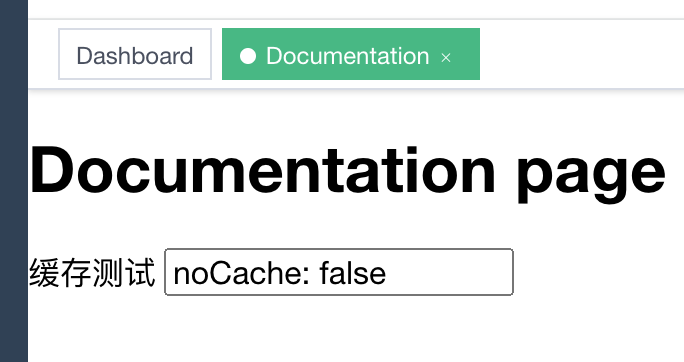

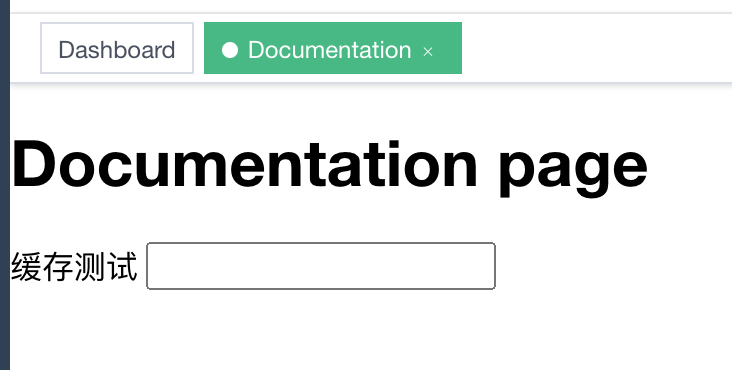

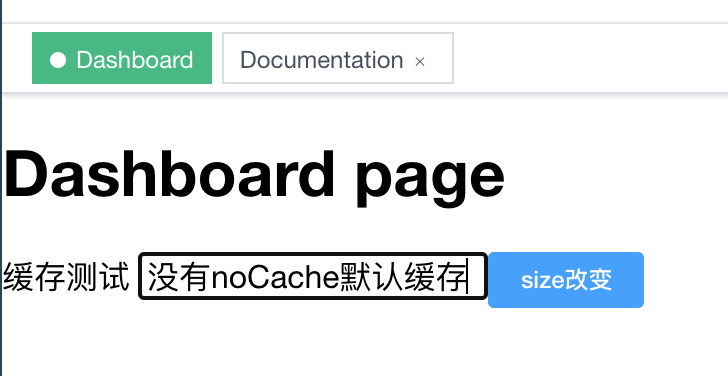

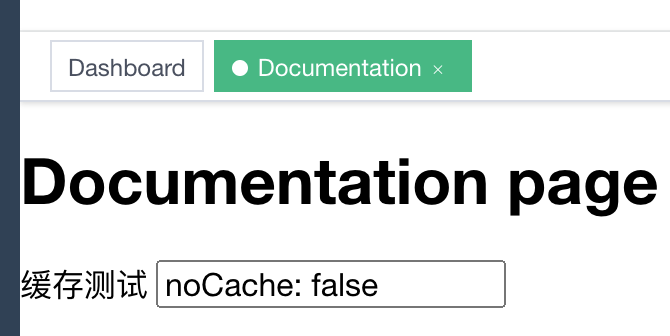

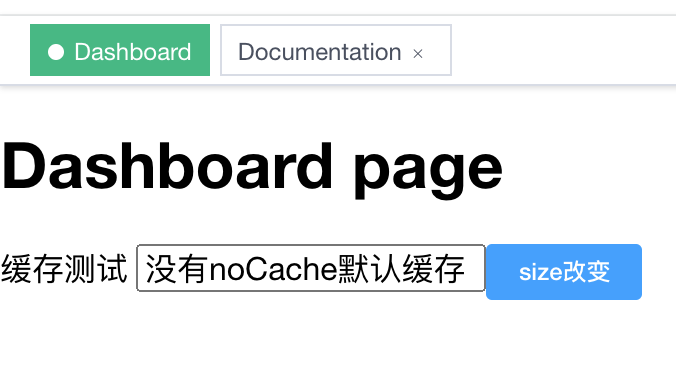

效果图 默认情况下没有 noCache 属性 或为 false 都会进行缓存 true 不缓存 image.pngimage.pngimage.png 再切回来 input 内容还在 image.png 如果为 true image.pngimage.pngimage.png 再切回来 input 内容没有了 image.png

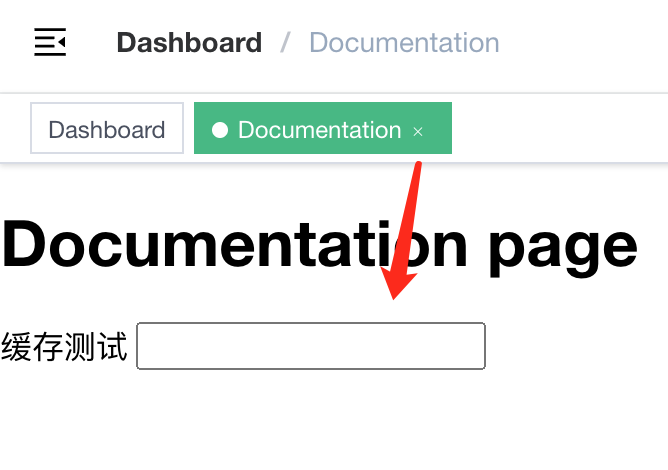

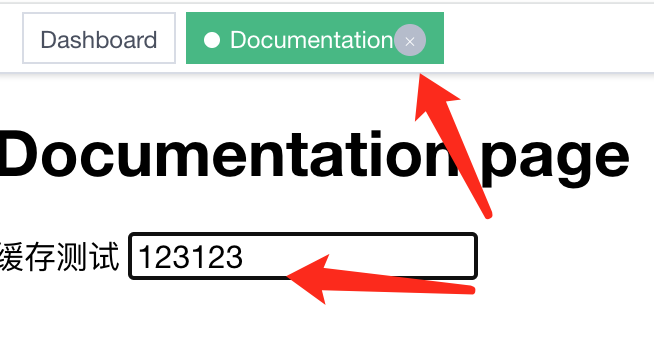

右键删除某一个标签导航时也要删除对应路由缓存 效果 image.png 关闭后再打开 input 内容被清空


5-1 修改 store 创建缓存列表

再添加标签导航时,同时也判断该路由要不要缓存,要缓存就根据路由配置的 name 属性进行缓存(路由组件的 name 要与路由配置的 name 一致)再添加到 keep-alive inludes 的缓存列表中。 (keep-alive 内部是根据组件的 name 进行缓存,我们添加到 cachedViews 缓存列表的 name 是从每条路由配置的 name 取得值,所以路由组件和路由配置中必须要有一致的 name 属性。)

tagsView module

主要就是添加 cachedViews 缓存集合,再新增用来添加和删除 cachedViews 缓存列表 actions 和 muations

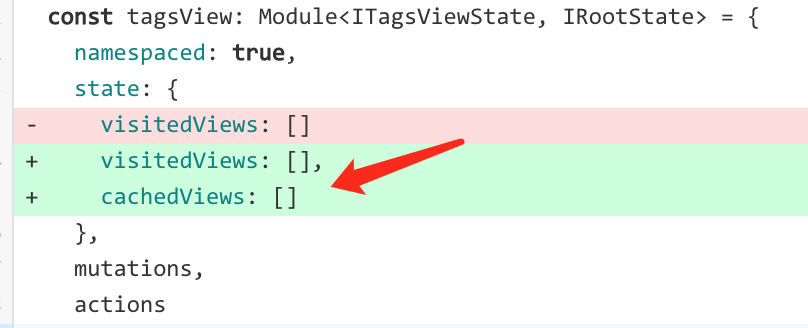

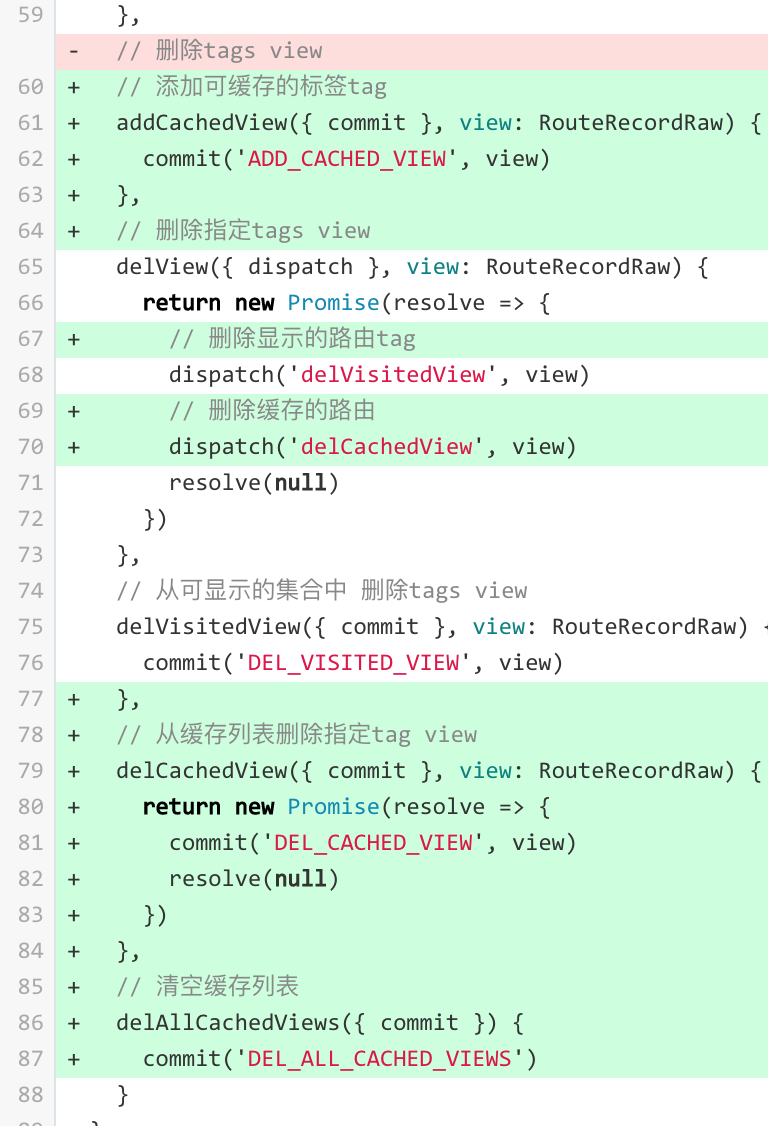

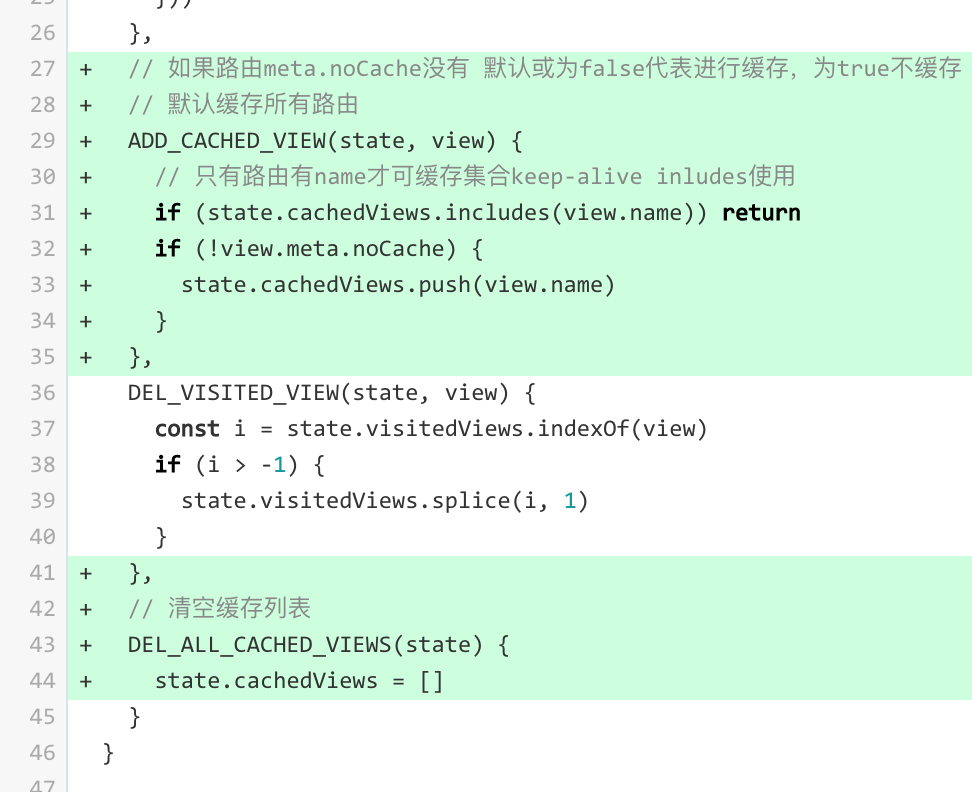

state image.pngimage.png actions (添加、删除) image.png mutations image.png src/store/modules/tagsView.ts

typescript
import { Module, ActionTree, MutationTree } from 'vuex'
import { RouteRecordRaw, RouteRecordNormalized, RouteRecordName } from 'vue-router'
import { IRootState } from '@/store'

// 携带fullPath
export interface RouteLocationWithFullPath extends RouteRecordNormalized {
  fullPath?: string;
}
export interface ITagsViewState {
  // 存放当前显示的tags view集合
  visitedViews: RouteLocationWithFullPath[];
  // 根据路由name缓存集合
  cachedViews: RouteRecordName[];
}

// 定义mutations
const mutations: MutationTree<ITagsViewState> = {
  // 添加可显示tags view
  ADD_VISITED_VIEW(state, view) {
    // 过滤去重
    if (state.visitedViews.some(v => v.path === view.path)) return
    // 没有titles时处理
    state.visitedViews.push(Object.assign({}, view, {
      title: view.meta.title || 'tag-name'
    }))
  },
  // 如果路由meta.noCache没有 默认或为false代表进行缓存,为true不缓存
  // 默认缓存所有路由
  ADD_CACHED_VIEW(state, view) {
    // 只有路由有name才可缓存集合keep-alive inludes使用
    if (state.cachedViews.includes(view.name)) return
    if (!view.meta.noCache) {
      state.cachedViews.push(view.name)
    }
  },
  // 可删除指定的一个view
  DEL_VISITED_VIEW(state, view) {
    const i = state.visitedViews.indexOf(view)
    if (i > -1) {
      state.visitedViews.splice(i, 1)
    }
  },
  // 可删除指定的一个view缓存
  DEL_CACHED_VIEW(state, view) {
    const index = state.cachedViews.indexOf(view.name)
    index > -1 && state.cachedViews.splice(index, 1)
  },
  // 清空缓存列表
  DEL_ALL_CACHED_VIEWS(state) {
    state.cachedViews = []
  }
}

// 定义actions
const actions: ActionTree<ITagsViewState, IRootState> = {
  // 添加tags view
  addView({ dispatch }, view: RouteRecordRaw) {
    // 添加tag时也要判断该tag是否需要缓存
    dispatch('addVisitedView', view)
    dispatch('addCachedView', view)
  },
  // 添加可显示的tags view 添加前commit里需要进行去重过滤
  addVisitedView({ commit }, view: RouteRecordRaw) {
    commit('ADD_VISITED_VIEW', view)
  },
  // 添加可缓存的标签tag
  addCachedView({ commit }, view: RouteRecordRaw) {
    commit('ADD_CACHED_VIEW', view)
  },
  // 删除指定tags view 同时要把它从visitedViews和cachedViews中删除
  delView({ dispatch }, view: RouteRecordRaw) {
    return new Promise(resolve => {
      // 删除对应显示的路由tag
      dispatch('delVisitedView', view)
      // 删除对应缓存的路由
      dispatch('delCachedView', view)
      resolve(null)
    })
  },
  // 从可显示的集合中 删除tags view
  delVisitedView({ commit }, view: RouteRecordRaw) {
    commit('DEL_VISITED_VIEW', view)
  },
  // 从缓存列表删除指定tag view
  delCachedView({ commit }, view: RouteRecordRaw) {
    return new Promise(resolve => {
      commit('DEL_CACHED_VIEW', view)
      resolve(null)
    })
  },
  // 清空缓存列表
  delAllCachedViews({ commit }) {
    commit('DEL_ALL_CACHED_VIEWS')
  }
}

const tagsView: Module<ITagsViewState, IRootState> = {
  namespaced: true,
  state: {
    visitedViews: [],
    cachedViews: []
  },
  mutations,
  actions
}

export default tagsView

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108

5-2 AppMain 中根据 store 中 cachedViews 列表进行缓存

之前我们是在 AppMian 中给了 keep-alive 的 includes 空数组,现在换成从 store 中获取 cachedViews 缓存列表

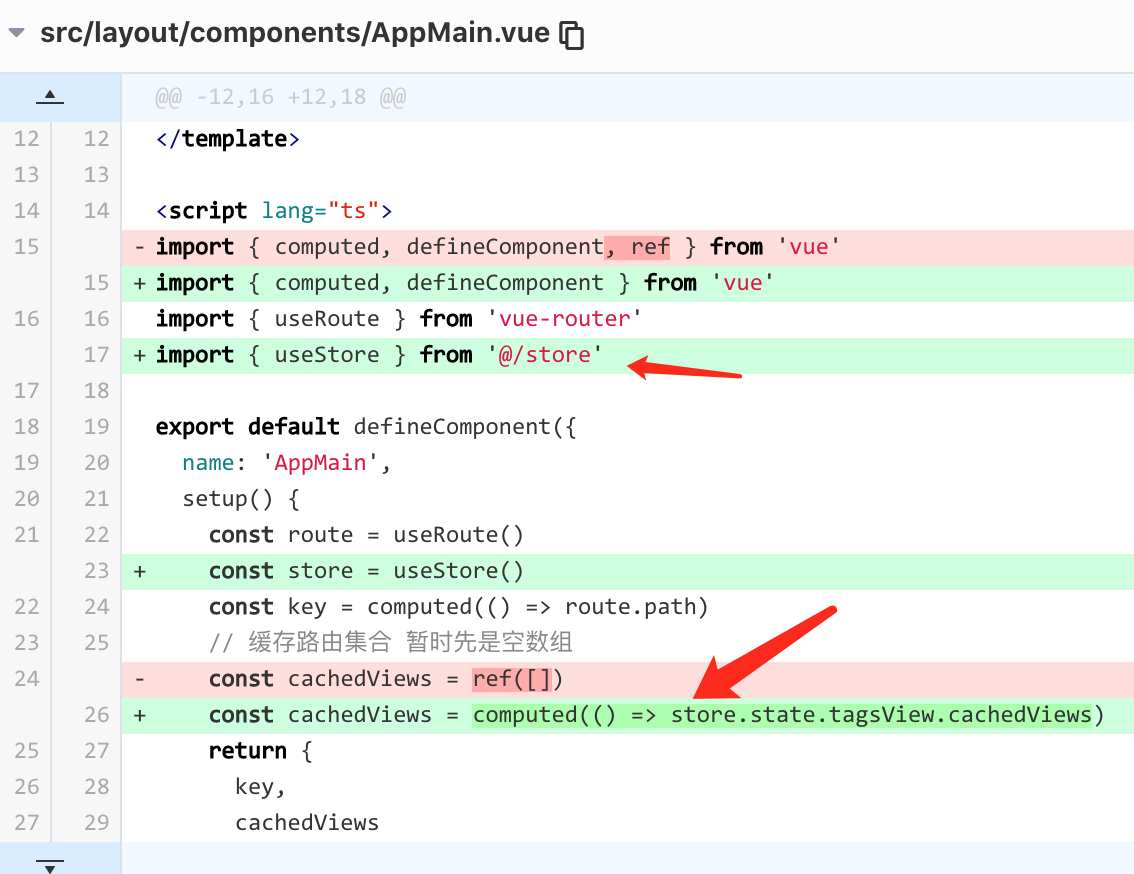

image.png src/layout/components/AppMain.vue

vue
<template>
  <div class="app-main">
    <!-- vue3 路由缓存 https://next.router.vuejs.org/guide/migration/index.html#router-view-keep-alive-and-transition -->
    <router-view v-slot={Component}>
      <transition name="fade-transform" mode="out-in">
        <keep-alive :include="cachedViews">
          <component :is="Component" :key="key" />
        </keep-alive>
      </transition>
    </router-view>
  </div>
</template>

<script lang="ts">
import { computed, defineComponent } from 'vue'
import { useRoute } from 'vue-router'
import { useStore } from '@/store'

export default defineComponent({
  name: 'AppMain',
  setup() {
    const route = useRoute()
    const store = useStore()
    const key = computed(() => route.path)
    // 缓存路由集合 暂时先是空数组
    const cachedViews = computed(() => store.state.tagsView.cachedViews)
    return {
      key,
      cachedViews
    }
  }
})
</script>

<style lang="scss" scoped>
.app-main {
  /* navbar 50px  */
  min-height: calc(100vh - 50px);
}

.fade-transform-enter-active,
.fade-transform-leave-active {
  transition: all .5s;
}

.fade-transform-enter-from {
  opacity: 0;
  transform: translateX(-30px);
}

.fade-transform-leave-to {
  opacity: 0;
  transform: translateX(30px);
}
</style>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

5-3 修改 SizeSelect 组件

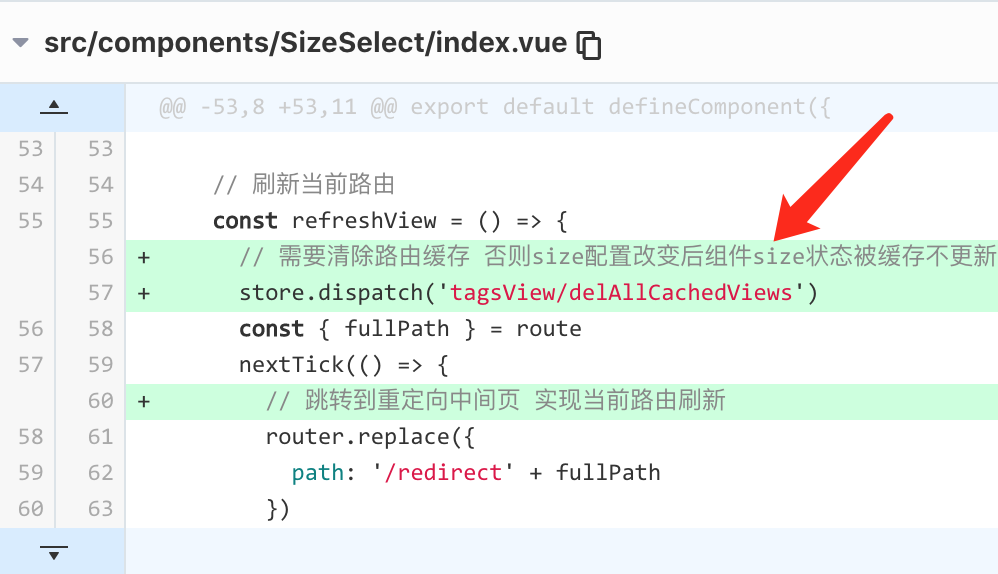

SizeSelect 组件主要用来切换 element 组件 size,由于路由默认会被缓存,会导致动态修改了 elemnt 组件 size 不更新,所以需要在修改 size 后 清空缓存里列表 在刷新当前路由


vue
<template>
  <div>
    <el-dropdown trigger="click" @command="handleSize">
      <div>
        <svg-icon class-name="size-icon" icon-class="size"></svg-icon>
      </div>
      <template #dropdown>
        <el-dropdown-menu>
          <el-dropdown-item
            v-for="item in sizeOptions"
            :key="item.value"
            :command="item.value"
            :disabled="item.value === size"
          >
            {{ item.label }}
          </el-dropdown-item>
        </el-dropdown-menu>
      </template>
    </el-dropdown>
  </div>
</template>

<script lang="ts">
import { Size } from '@/plugins/element'
import {
  defineComponent,
  ref,
  getCurrentInstance,
  ComponentInternalInstance,
  ComponentPublicInstance,
  computed
} from 'vue'
import { useRoute, useRouter } from 'vue-router'
import { useStore } from '@/store'
import { nextTick } from 'process'

export default defineComponent({
  name: 'SizeSelect',
  setup() {
    const store = useStore()
    const route = useRoute()
    const router = useRouter()
    const { proxy } = getCurrentInstance() as ComponentInternalInstance
    // store中获取size
    const size = computed(() => store.getters.size)
    // element size 选项
    const sizeOptions = ref([
      { label: 'Default', value: 'default' },
      { label: 'Medium', value: 'medium' },
      { label: 'Small', value: 'small' },
      { label: 'Mini', value: 'mini' }
    ])

    // 刷新当前路由
    const refreshView = () => {
      // 需要清除路由缓存 否则size配置改变后组件size状态被缓存不更新
      store.dispatch('tagsView/delAllCachedViews')
      const { fullPath } = route
      nextTick(() => {
        // 跳转到重定向中间页 实现当前路由刷新
        router.replace({
          path: '/redirect' + fullPath
        })
      })
    }

    // command 获取点击按钮的command属性值 作为size值
    const handleSize = (command: Size) => {
      // 修改element-plus组件尺寸
      (proxy as ComponentPublicInstance).$ELEMENT.size = command
      // 更新store
      store.dispatch('app/setSize', command)
      // 切换size需要刷新路由才能生效
      refreshView()
      proxy?.$message.success({
        type: 'success',
        message: 'Switch Size Success'
      })
    }

    return {
      sizeOptions,
      size,
      handleSize
    }
  }
})
</script>

<style lang="scss">
  .size-icon {
    font-size: 18px;
  }
</style>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95

5-3 测试

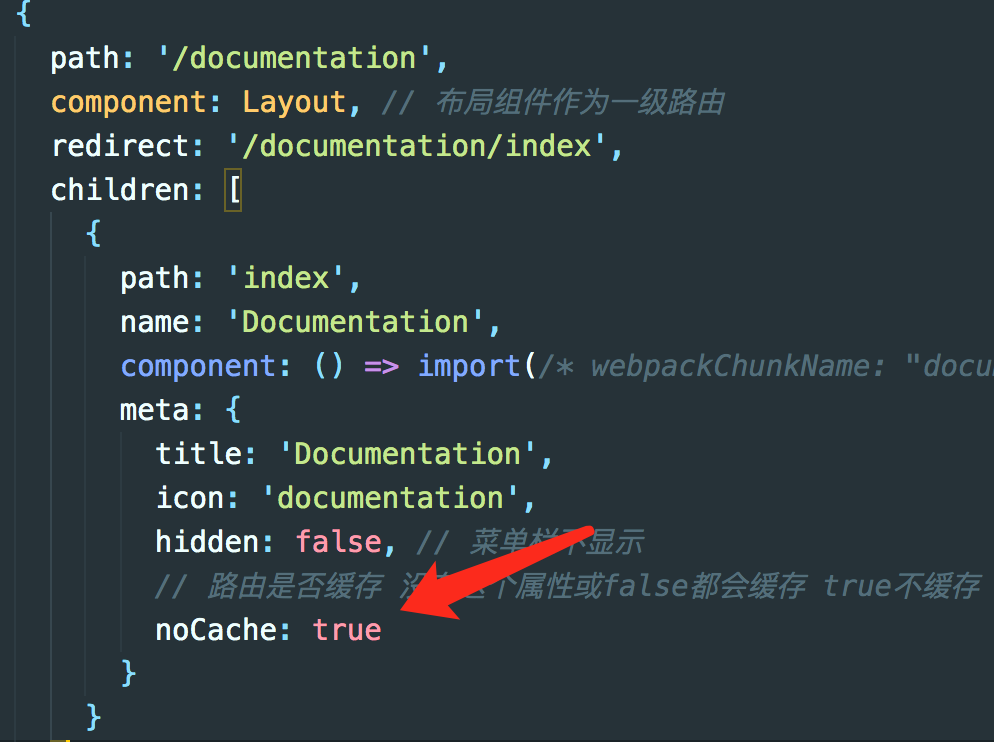

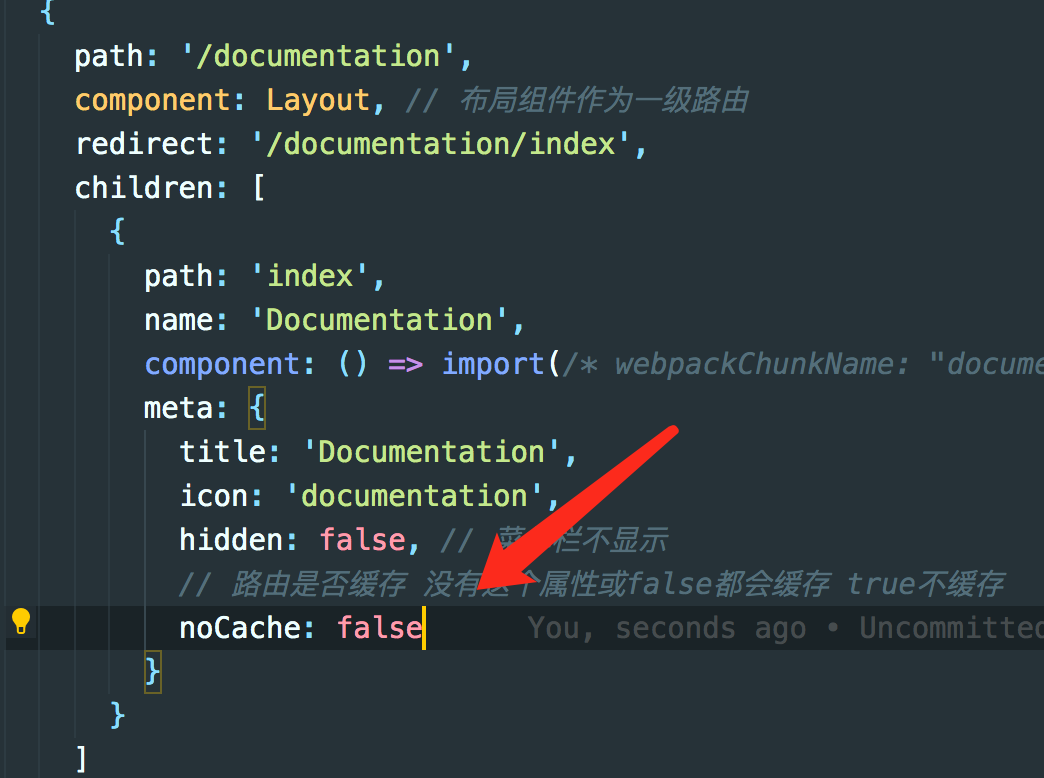

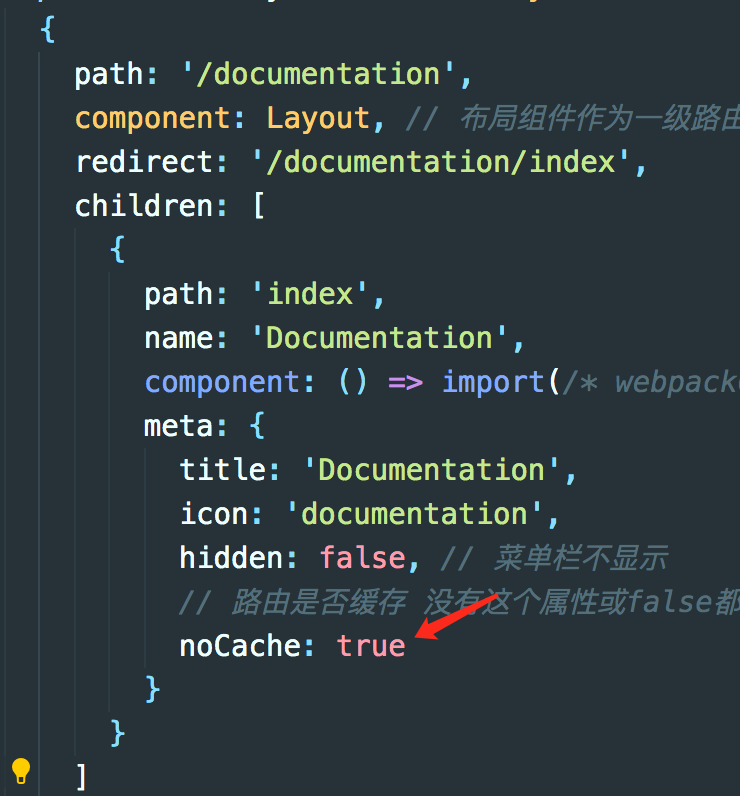

image.png 通过修改路由 noCache 属性来测试 image.png

本节参考源码

https://gitee.com/brolly/vue3-element-admin/commit/cb38b128c2a0b193d4ca42083b11e1c1b1c97870
